Reference Technical Data for Yinxuan Extruded Graphite Material
| Grade |
Item |
Unit |
Reference Data |
Main Applications |
| Regular |
Specific Resistivity |
μΩ·m |
7.4 — 8.8 |
|

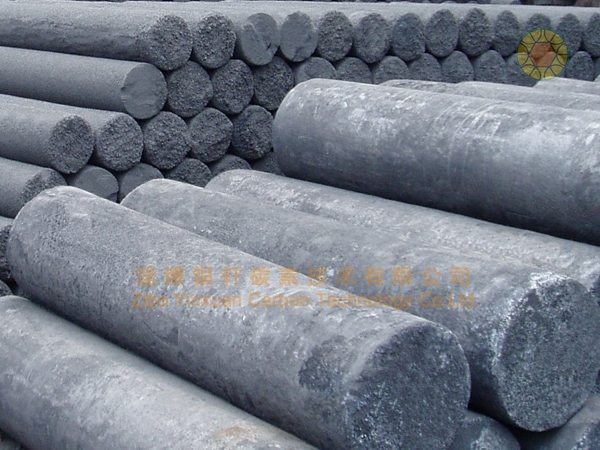

Extruded graphite is mainly in round shape, and also with small quantity of square shape.
Main applications are as following:
1. Used to machine graphite crucibles, boats/dish, molds, rotor and shaft, launder, graphite densener and so on.
2. Used as structural material in high temperature furnace.
3. Used as blank materials for machined graphite parts in environment of strong acid, strong alkali and strong erosion. Such as industries of rare earth, chemicals and so on.
4. Used to machine graphite electrodes.
|
|
| Bulk Density |
g/cm3 |
1.55 — 1.60 |
| Flexural Strength |
MPa |
≥8.0 |
| Elastic Modulus |
GPa |
≤9.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
2.0 — 2.6 |
| Ash |
% |
≤0.3 |
One
Impregnated Two Baked |
Specific Resistivity |
μΩ·m |
5.5 — 6.8 |
| Bulk Density |
g/cm3 |
1.63 — 1.70 |
| Flexural Strength |
MPa |
≥11.0 |
| Elastic Modulus |
GPa |
≤11.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
1.8 — 2.2 |
| Ash |
% |
≤0.3 |
| Two Impregnated Three Baked |
Specific Resistivity |
μΩ·m |
4.6 — 6.2 |
| Bulk Density |
g/cm3 |
1.66 — 1.73 |
| Flexural Strength |
MPa |
≥13.0 |
| Elastic Modulus |
GPa |
≤15.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
1.2 — 1.8 |
| Ash |
% |
≤0.3 |
Extruded Graphite
Extruded Graphite
Extruded Graphite |
